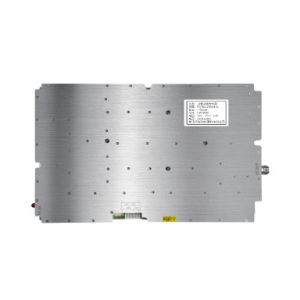

Name: 2700MHz 200W Wideband RF Power Amplifier Module NXPA700 Odm
Brand: NENGXUN
Price: 1 USD

Brand Name : NENGXUN

Model Number : NXPA700-2700MHz-200W

Place of Origin : CHINA

MOQ : 1

Price : The price is negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000

Delivery Time : 5-8DAYS

Packaging Details : 25.6*111.7*17MM

Frequency : NXPA700-2700MHz-200W

Dimensions(mm)/Weight : 322.5×213.4×29.5mm/ ≤6.87KG

Over Temp Protection : Over 80℃,open circuit protection

Working Temperature : -30℃～+50℃

Contact Now

Small size, Low power consumption, good stability;
High linearity and Intermodulation;
Shape structure can be customized
Products can be developed according specification;
Widely used in Radar, Navigation, Communication, EMC test and other Civil fields

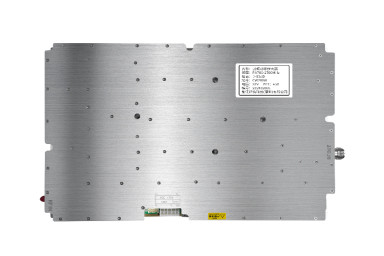

2700MHz 200W Wideband RF Power Amplifier Module NXPA700 Odm

(Parameters)	(Symbol)	(Min)	(Typ)	(Max)	(Unit)
Operating Frequency	Freq	0.7		2.7	GHz
Output Power CW	Psat	51.5	53	54	dBm
Input Power	Pin	-1	0	3	dBm
Power Gain @ 1dB	Gain	49	50	53	dB
Gain Flatness	ΔG			±2.0	dB
PTT port		PTT port; 3.3~5V on
Working Current	Icc	18	20	21	A
Input VSWR	VSWR			1.7
Third order Intermodulation	IMD3	-25			dBc
2^nd Harmonics	Harmonic	-12			dBc
Over Temp Protection		Over 80℃,open circuit protection
Operating Voltage	VDD	+28	+32	+33	V
Overall Dimensions/Weight	322.5×213.4×29.5mm/ ≤6.87KG
RF Interface	RFIN-SMA-KFB/ RFOUT-N-KFD
Working Temperature	-30℃～+50℃

Support and Services:

RF Power Amplifier Technical Support and Services

Provide technical guidance on the installation, use and maintenance of RF Power Amplifier.
Provide troubleshooting and repair services.
Provide replacement parts and components.
Answer customer inquiries and provide product information.
Provide technical training for customers.
Provide warranty service.
